AmeriGlide Nano Vertical Platform Lift - Quick Ship

Share This Page

spacer

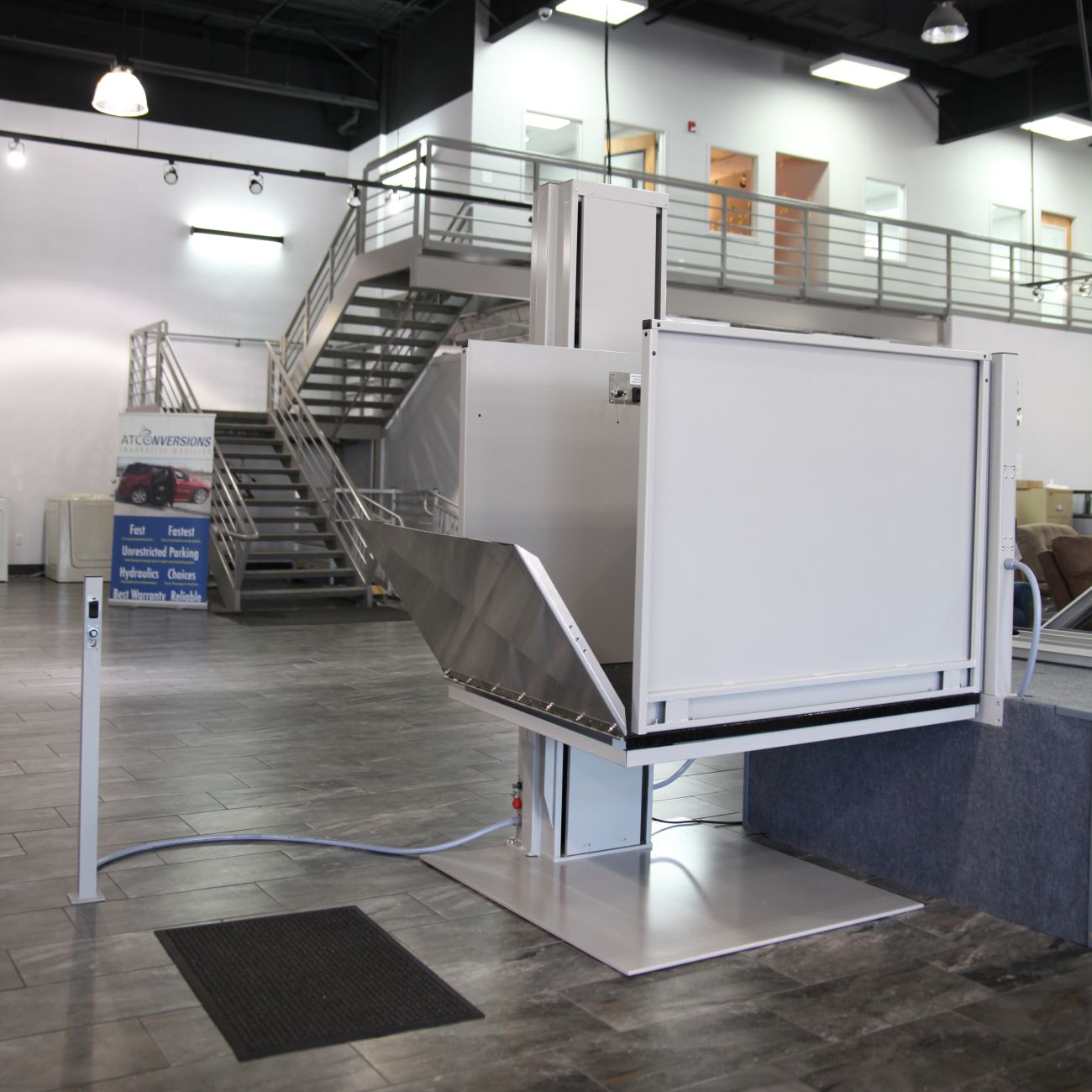

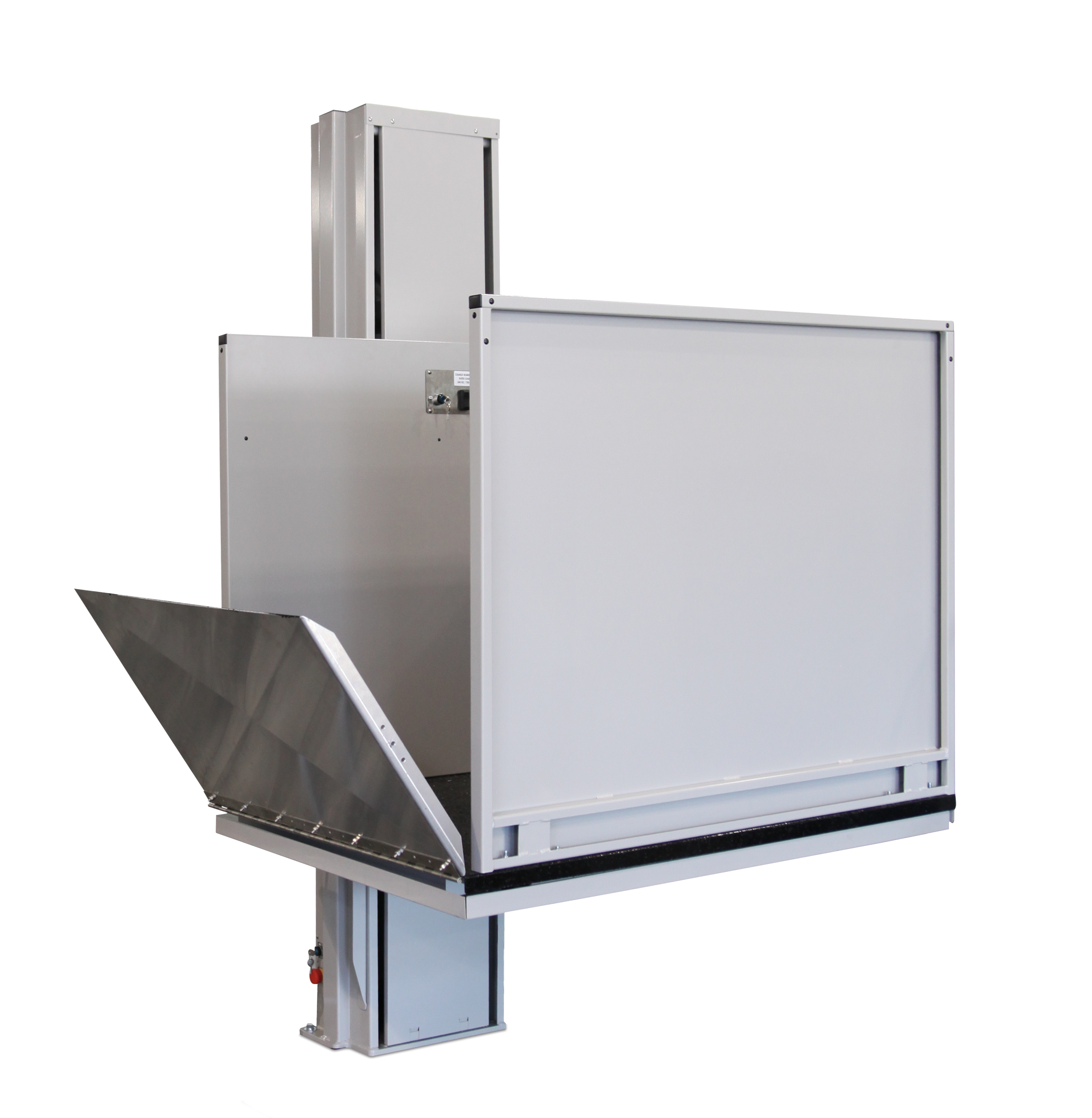

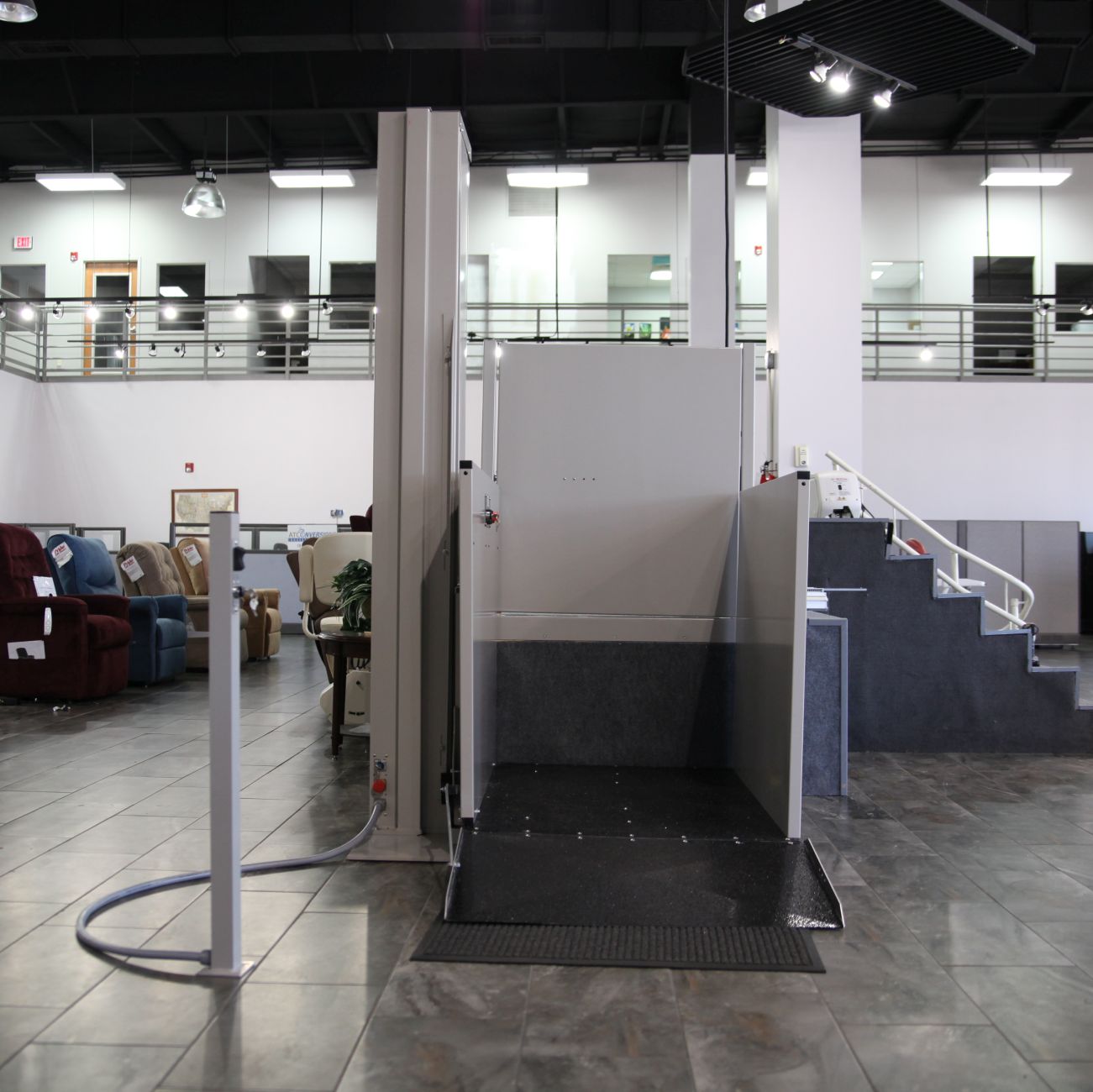

The AmeriGlide Nano Vertical Platform Lift is the market's slimmest and most elegant tower design, which means a more attractive look, low shipping costs and easier installation.

The attractive Nano Vertical Platform Lift has been designed, developed and manufactured to meet the highest safety and security standards in the industry with an innovated design that features:
  • Much Smaller Footprint
  • Automotive-Grade Steel
  • More Attractive Look
  • Plug-N-Play
  • Reversible (left or right tower)

Warranty Info

Click Here



Products Specs
Lifting Capacity800 lb
Standard Lift Height64"
Maximum Lift Height64"
Arrives AssembledYes
Drive SystemAcme Screw
Battery Powered OptionYes
Constant Pressure Platform ControlYes
Emergency Stop Platform ControlIncluded
Alarm ButtonIncluded
Keyed Platform ControlIncluded
Platform TypeNon-skid (Epoxy crushed and recycled tires)
Platform Size36" x 54"
Optional Platform SizesCustom: W (31" to 42") x L (46" to 66")
Platform ConfigurationStraight-Thru Access
Optional Platform ConfigurationsSame Side Entry-Exit, 90 Degree Adjacent Access
Grab RailOptional
Maximum Stops3
Lift Speed (FPM)12
PortableNo
  • Nano Includes
    • 455 Keys  $0.00

      No Image

    • Rocker Switch  $0.00

      No Image

    • Audible Emergency Alarm  $0.00

      No Image

    • Pit Switch  $0.00

      No Image

    • AC Power Cord (120VAC/20A) and Interlock Wiring Kit (Interlocks Not Included)  $0.00

      No Image

    • Emergency Lowering  $0.00

      No Image

  • Power Source
    • DC Battery Powered (2 x U1 Batteries Included)  $0.00

      No Image

  • Number of Stops
    • Two Stop  $0.00

      No Image

  • Lifting Height
    • 64" Maximum Lift Height (tower 92")  $0.00

      No Image

  • Platform / Tower Configuration
    • Straight Thru Left Hand  $0.00

      Straight Thru Left Hand

    • Straight Thru Right Hand  $0.00

      Straight Thru Right Hand

  • Platform Dimensions (Dimensions are All Clear)
    • 36" x 54"  $0.00

      No Image

  • Entrance Gate Options (Interlock Included with Gate)
    • A Call/Send Control must be ordered for every Gate Ordered  $0.00

      No Image

    • Any Gate Selected Must Be Hinged Same Side as Tower  $0.00

      No Image

    • 36" W x 42" H Upper Landing Gate  $975.00

      No Image

  • Call/Send Options
    • Keyed Call/Send Post - Lower Landing  $250.00

      Hercules DC 750 Call/Send Post

    • Keyed Call/Send Post - Upper Landing  $250.00

      Hercules DC 750 Call/Send Post

    • Keyed Call/Send Flush Mount - Lower Landing  $250.00

      Hercules DC 750 Flush Mount Call/Send

    • Keyed Call/Send Flush Mount - Upper Landing  $250.00

      Hercules DC 750 Flush Mount Call/Send

    • Keyed Call/Send Surface Mount - Lower Landing  $250.00

      Hercules DC 750 Surface Mount Call/Send

    • Keyed Call/Send Surface Mount - Upper Landing  $250.00

      Hercules DC 750 Surface Mount Call/Send

    • Gate Mounted for Upper Landing Gate  $250.00

      Hercules DC 750 In Gate Frame Call/Send - Quick Ship

  • Interlocks (For Gates/Doors Provided by Others)
    • Interlock Only (For Gates/Doors Provided by Others)  $395.00

      Hercules Interlock for Customer Provided Gate or Door

  • State Required Inspections / Permits / Evaluations
    • Permit (Required in Kentucky)  $87.50

      No Image

    • Georgia Permit & Inspection Fees  $250.00

      No Image

    • Site Evaluation (Required for sites outside a 50 mile radius of Raleigh when Install Purchased)  $150.00

      No Image

    • Alabama residents, please call 1 (205) 202-0158 for installation and permit pricing.  $0.00

      No Image

  • Installation (Within 100 miles of Raleigh)
    • Self-Install  $0.00

      No Image

    • Up to 64" Lift Height Installation  $1,295.00

      No Image

  • Delivery Options
    • Pick up at Local Freight Terminal  $0.00

      No Image

    • Raleigh NC Warehouse Pickup  $675.00

      No Image

    • Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site  $0.00

      No Image

    • Site Shipping - Liftgate Delivery  $250.00

      No Image

    • Site Shipping - Flatbed & Forklift Delivery (Available in Most Areas)  $1,495.00

      No Image

    • Factory Pickup  $0.00

      No Image

  • Delivery Zones (adds to flat shipping charge)
    • Deliver to: Eastern and East-Central States  $0.00

      No Image

    • Deliver to:FL, IA, KS, ME, MN, NY, OK  $194.00

      No Image

    • Deliver to: CO, KS, NE, ND, NM, OK, SD, TX, WY  $475.00

      No Image

    • Deliver to: AZ, CA, ID, MT, NV, OR, UT, WA  $913.00

      No Image

    • Deliver to: AK, HI, PR (call for price)  $0.00

      No Image



What out customers think about this product...

This product currently has no reviews. Would you like to leave one?
