AmeriGlide Hercules 750 Residential

Share This Page

spacer

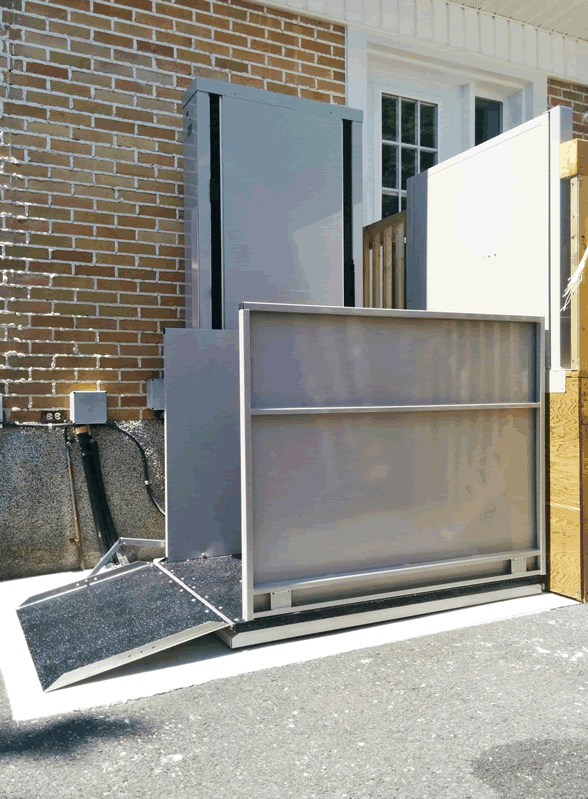

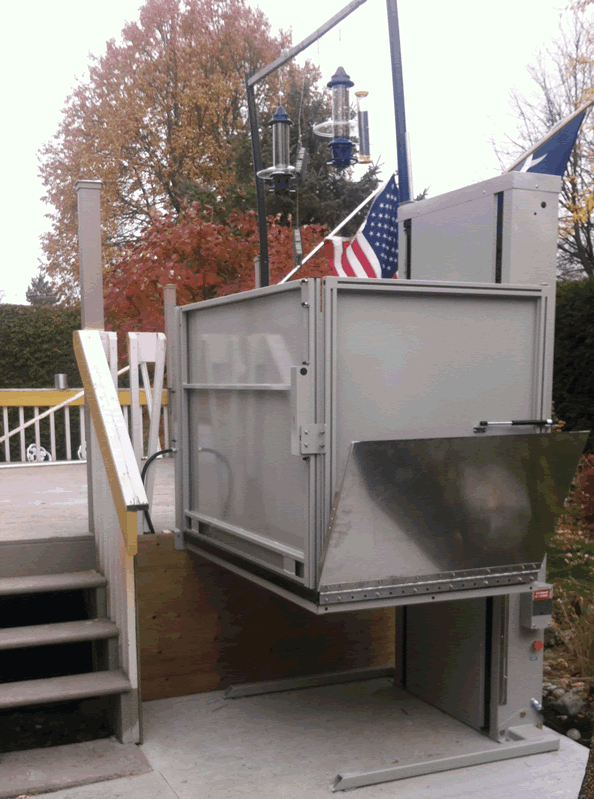

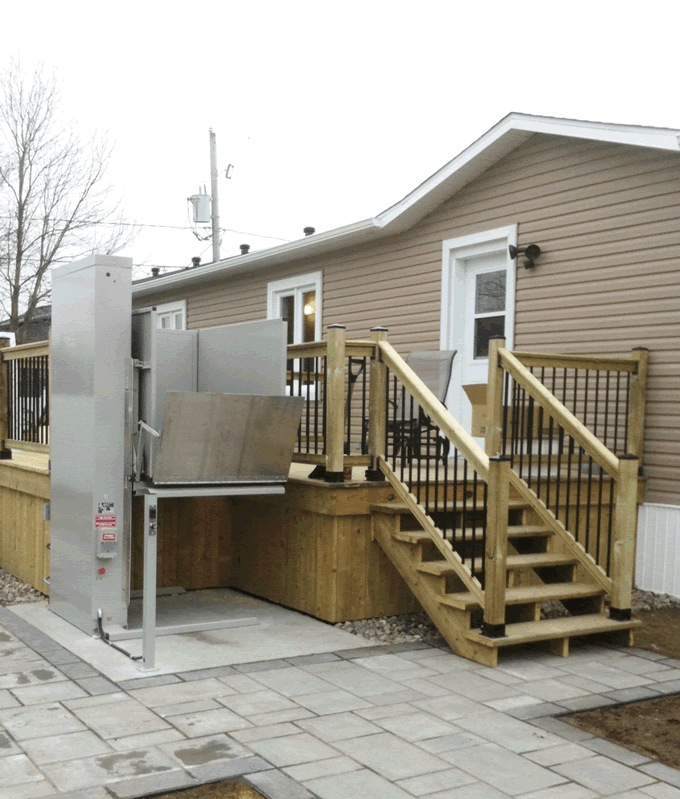

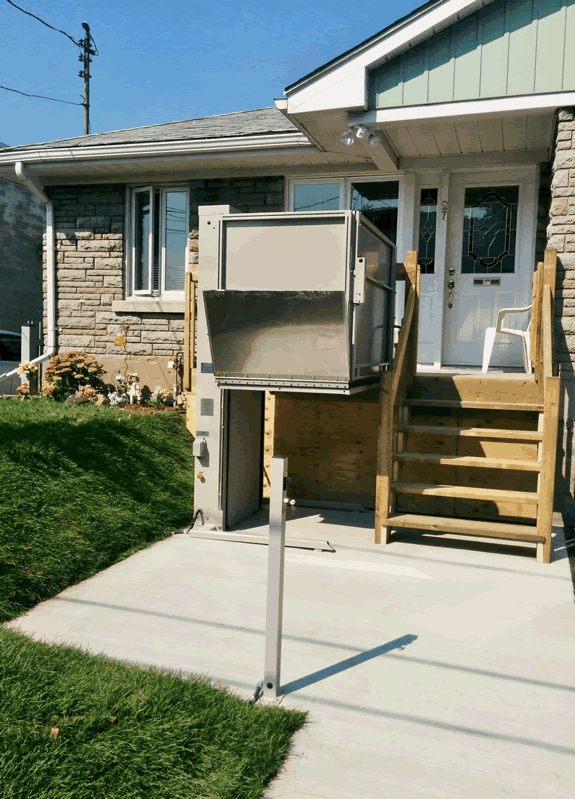

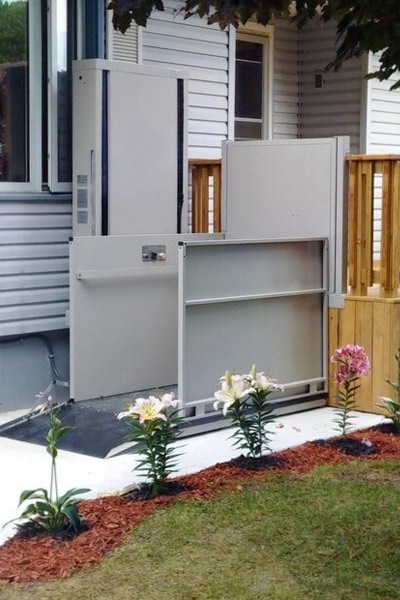

The AmeriGlide Hercules 750 Residential Vertical Lift is the ideal vertical platform lift for outdoor or indoor applications. Great for porches, decks, and garages too! The non-skid epoxy coated floor and galvanized steel panel is weather resistant, even in the harshest conditions.

A 750 pound weight capacity comes standard on the Hercules, but a 1000-pound capacity is available as an option. Great for lifting large wheelchairs and two people at one time.

The acme screw direct drive makes the Hercules the smoothest and quietest lift on the market. Being battery powered, the lift and its automatic self-lowering folding ramp (standard) will even work during a power outage.

Safety features include under platform obstruction detection, emergency stop switch, anti-skid floor surface, emergency alarm, and much more.

To learn more about the Hercules 750 Residential Vertical Lift, call and speak with our experienced VPL experts today.

If you need a fully enclosed Vertical Lift, see our AmeriGlide Hercules 750 Commercial Enclosed Vertical Platform Lift.

Warranty Info

Click Here



Products Specs
Lifting Capacity750 lb
Standard Lift Height64"
Maximum Lift Height160"
Arrives AssembledNo
Drive SystemDirect Drive ACME Screw
Battery Powered OptionYes
Constant Pressure Platform ControlYes
Alarm ButtonIncluded
Platform TypeNon-skid (Epoxy crushed and recycled tires)
Platform SizeW 34"-36" x L 54"-60"
Optional Platform SizesCustom: W (31" to 42") x L (46" to 66")
Platform ConfigurationStraight-Thru Access
Optional Platform ConfigurationsSame Side Entry-Exit, 90 Degree Adjacent Access
Grab RailOptional
Maximum Stops3
Lift Speed (FPM)9
PortableOptional
  • Residential Hercules DC 750 Includes
    • 455 Keys  $0.00

      No Image

    • Rocker Switch  $0.00

      No Image

    • Audible Emergency Alarm  $0.00

      No Image

    • Pit Switch  $0.00

      No Image

    • AC Power Cord and Interlock Wiring Kit (Interlocks Not Included)  $0.00

      No Image

  • Power Source
    • DC Battery Powered (2 x U1 Batteries Included)  $0.00

      No Image

    • AC Powered  $0.00

      No Image

  • Number of Stops
    • Two Stop  $0.00

      No Image

    • Three Stop  $1,995.00

      No Image

  • Lifting Height
    • 44" Maximum Lift Height (tower 72")  $1,299.00

      No Image

    • 64" Maximum Lift Height (tower 92")  $0.00

      No Image

    • 78" Maximum Lift Height (tower 108")  $2,599.00

      No Image

    • 98" Maximum Lift Height (tower 126")  $3,899.00

      No Image

    • 115" Maximum Lift Height (tower 158")  $6,599.00

      No Image

    • 130" Maximum Lift Heigth (tower 158")  $7,299.00

      No Image

    • 160" Maximum Lift Height (tower 190")  $7,999.00

      No Image

  • Select Tower Bracket Type
    • For Tower Heights: 44", 64", 78", 98"  $0.00

      No Image

    • No Bracket Desired (for 44", 64", 78", 98")  $0.00

      No Image

    • Triangle (for 44", 64", 78", 98")  $390.91

      No Image

    • Ground Bracket (for 44", 64", 78", 98")  $390.91

      No Image

    • For Tower Heights 115", 130", 160" (bracket included in unit price)  $0.00

      No Image

    • Triangle Bracket (for 115",130", 160")  $0.00

      No Image

    • Ground Bracket (for 115",130", 160")  $0.00

      No Image

  • Color of Unit
    • Grey (standard)  $0.00

      No Image

    • Custom Color (Call to Verify Color Available)  $3,500.00

      No Image

    • Stainless Steel  $8,995.00

      No Image

  • Fascia Panels
    • No Fascia Panels  $0.00

      No Image

    • Fascia Panels can be any height up to 98". Specify height in decimal feet below.  $0.00

      No Image

    • Galvanized Steel Fascia Panels (per foot)  $60.00

      No Image

    • 3/16" Acrylic Lexan w/Aluminum Frame (per foot)  $67.20

      No Image

  • Platform / Tower Configuration
    • Straight Thru Left Hand  $0.00

      Straight Thru Left Hand

    • 90 Degree Left Hand  $999.00

      90 Degree Left Hand

    • Straight Thru Right Hand  $0.00

      Straight Thru Right Hand

    • 90 Degree Right Hand  $999.00

      90 Degree Right Hand

    • Same Side Entry/Exit (For Hoistway Installs Only)  $999.00

      No Image

  • Guard Panels / Cab
    • 42" High Steel Guard Panels (Standard)  $0.00

      No Image

    • 80" High Full Cab  $5,040.00

      No Image

  • Platform Canopy for 42" Panels (Rather Than Full Cab)
    • No Canopy  $0.00

      No Image

    • Platform Canopy  $1,450.00

      No Image

  • Wing Walls
    • No Wing Walls  $0.00

      No Image

    • 64" Travel  $1,268.40

      No Image

    • 78" Travel  $1,402.80

      No Image

    • 98" Travel  $1,537.20

      No Image

    • 115" Travel  $1,669.92

      No Image

    • 130" Travel  $1,797.60

      No Image

    • 160" Travel  $1,932.00

      No Image

    • New Option  $0.00

      No Image

    • New Option  $0.00

      No Image

  • Platform Dimensions (Dimensions are All Clear)
    • 34" x 54"  $0.00

      No Image

    • 34" x 60"  $0.00

      No Image

    • 36" x 54"  $0.00

      No Image

    • 36" x 60"  $1,499.00

      No Image

    • Custom: W=30" to 42" by L=46" to 66"  $1,499.00

      No Image

  • Platform Controls
    • 40mm (1.57") Diameter Buttons on Platform  $400.00

      No Image

    • 60mm (2.36") Diameter Buttons on Platform  $400.00

      No Image

    • Joystick  $209.10

      No Image

    • Additional Platform Controls (On Opposite Side)  $699.00

      No Image

    • Lighted Buttons for COP  $399.00

      No Image

  • Lower Landing (Platform) Orientation
    • Note: If Selecting a Platform Gate It Must Be Hinged Same Side as Tower  $0.00

      No Image

    • Open on Left  $0.00

      Open on Left

    • Open on Right  $0.00

      Open on Right

  • Lower Landing Entrance (Interlock Included with Door/Gate)
    • A Call/Send Control must be ordered for every Door or Gate Ordered  $0.00

      Open on Right

    • 36" W x 42" H Platform Gate  $1,299.00

      No Image

    • 38" to 42" W x 42" H Platform Gate  $1,799.00

      No Image

    • Door 80" H x 36" W Interior  $1,350.00

      Hercules Door 36" x 80" Interior

    • Door 80" H x 36" W Exterior  $2,399.00

      Hercules Door 36" x 80" Exterior

    • Door 80" H x 36" W Fire Rated  $2,250.00

      Hercules Door 36" x 80" Fire Rated

    • Door 80" H x 36" W Exterior Polycarbonate  $2,399.00

      Hercules Door 36" x 80" Exterior Polycarbonate

    • Door 80" H x 42" W Interior  $2,295.00

      Hercules Door 42" x 80" Interior

    • Door 80" H x 42" W Exterior  $3,250.00

      Hercules Door 42" x 80" Exterior

    • Door 80" H x 42" W Fire Rated  $2,999.00

      Hercules Door 42" x 80" Fire Rated

    • Door 80" H x 42" W Exterior Polycarbonate  $3,250.00

      Hercules Door 42" x 80" Exterior Polycarbonite

    • No Gate or Door (For Gates/Doors Provided by Others)  $0.00

      No Image

  • Mid Landing Orientation (3 Stop Units Only)
    • Open on Left  $0.00

      No Image

    • Open on Right  $0.00

      No Image

  • Mid Landing Entrance (3 Stop Units Only, Interlock Included)
    • A Call/Send Control must be ordered for every Door or Gate Ordered  $0.00

      No Image

    • Door 80" H x 36" W Interior  $1,350.00

      Hercules Door 36" x 80" Interior

    • Door 80" H x 36" W Exterior  $2,399.00

      Hercules Door 36" x 80" Exterior

    • Door 80" H x 36" W Fire Rated  $2,250.00

      Hercules Door 36" x 80" Fire Rated

    • Door 80" H x 36" W Exterior Polycarbonate  $2,399.00

      Hercules Door 36" x 80" Exterior Polycarbonate

    • Door 80" H x 42" W Interior  $2,295.00

      Hercules Door 42" x 80" Interior

    • Door 80" H x 42" W Exterior  $3,250.00

      Hercules Door 42" x 80" Exterior

    • Door 80" H x 42" W Fire Rated  $2,999.00

      Hercules Door 42" x 80" Fire Rated

    • Door 80" H x 42" W Exterior Polycarbonate  $3,250.00

      Hercules Door 42" x 80" Exterior Polycarbonite

    • Interlock is included with any Door Ordered  $0.00

      Hercules Door 42" x 80" Exterior Polycarbonite

    • No Door (For Doors Provided by Others)  $0.00

      No Image

  • Upper Landing Orientation
    • Open on Left  $0.00

      Open on Left

    • Open on Right  $0.00

      Open on Right

  • Upper Landing Entrance (Interlock Included with Door/Gate)
    • A Call/Send Control must be ordered for every Door or Gate Ordered  $0.00

      Open on Right

    • 34" or 36" W x 42" H Upper Landing Gate (includes Call/Send in frame)  $1,199.00

      No Image

    • 38" to 42" W x 42 H Upper Landing Gate (includes Call/Send in frame)  $1,695.00

      No Image

    • Door 80" H x 36" W Interior  $1,350.00

      Hercules Door 36" x 80" Interior

    • Door 80" H x 36" W Exterior  $2,399.00

      Hercules Door 36" x 80" Exterior

    • Door 80" H x 36" W Fire Rated  $2,250.00

      Hercules Door 36" x 80" Fire Rated

    • Door 80" H x 36" W Exterior Polycarbonate  $2,399.00

      Hercules Door 36" x 80" Exterior Polycarbonate

    • Door 80" H x 42" W Interior  $2,295.00

      Hercules Door 42" x 80" Interior

    • Door 80" H x 42" W Exterior  $3,250.00

      Hercules Door 42" x 80" Exterior

    • Door 80" H x 42" W Fire Rated  $2,999.00

      Hercules Door 42" x 80" Fire Rated

    • Door 80" H x 42" W Exterior Polycarbonate  $3,250.00

      Hercules Door 42" x 80" Exterior Polycarbonite

    • No Gate or Door (For Gates/Doors Provided by Others)  $0.00

      No Image

  • Polycarbonate Gate Option
    • If a gate is selected for Platform or Upper Landing, these options allow you to switch to a Polycarbonate panel  $0.00

      No Image

    • Polycarbonate Panel in Platform Gate (must have selected gate above)  $436.37

      No Image

    • Polycarbonate Panel in Upper Landing Gate (must have selected gate above)  $595.00

      No Image

  • Interlocks (For Gates/Doors Provided by Others)
    • Interlock Only (For Gates/Doors Provided by Others)  $399.00

      Hercules Interlock for Customer Provided Gate or Door

  • Call/Send Options
    • 40mm (1.57") Diameter Buttons on Call Station  $144.00

      No Image

    • 60mm (2.36") Diameter Buttons on Call Station  $144.00

      No Image

    • Anti-Tamper Commercial Buttons  $220.00

      No Image

    • Keyed Call/Send Post - Lower Landing  $250.00

      Hercules DC 750 Call/Send Post

    • Keyed Call/Send Post - Mid Landing  $250.00

      Hercules DC 750 Call/Send Post

    • Keyed Call/Send Post - Upper Landing  $250.00

      Hercules DC 750 Call/Send Post

    • Keyed Call/Send Flush Mount - Lower Landing  $250.00

      Hercules DC 750 Flush Mount Call/Send

    • Keyed Call/Send Flush Mount - Mid Landing  $250.00

      Hercules DC 750 Flush Mount Call/Send

    • Keyed Call/Send Flush Mount - Upper Landing  $250.00

      Hercules DC 750 Flush Mount Call/Send

    • Keyed Call/Send Surface Mount - Lower Landing  $250.00

      Hercules DC 750 Surface Mount Call/Send

    • Keyed Call/Send Surface Mount - Mid Landing  $250.00

      Hercules DC 750 Surface Mount Call/Send

    • Keyed Call/Send Surface Mount - Upper Landing  $250.00

      Hercules DC 750 Surface Mount Call/Send

    • Keyed Call/Send In Gate's Frame - Upper Landing Only  $250.00

      Hercules DC 750 In Gate Frame Call/Send

    • Lighted Buttons for Call Station  $285.00

      No Image

    • Call/Send Control must be ordered for every Door or Gate Ordered  $0.00

      No Image

  • Auto Openers and Closers
    • Auto Operator for Gate Qty.  $1,495.00

      No Image

    • Auto Operator for Door Qty.  $1,695.00

      Hercules DC 750 Auto Operator for Door (Residential & Commercial)

    • Wireless Remotes for Auto Operators (2x)  $240.00

      No Image

    • Gas Spring Loaded Door Closer (Required for Doors Without Auto Operator)  $156.00

      Hercules DC 750 Gas-Spring Door Closer

  • Other Options
    • Grab Bar  $350.00

      No Image

    • Platform Lights  $240.00

      No Image

    • Disconnect Switch  $240.00

      No Image

    • Designer Gate  $400.00

      No Image

    • Easy Access Lowering Mechanism  $596.37

      No Image

    • Folding Seat  $599.00

      No Image

    • Fixed Ramp for Bottom Landing  $599.00

      No Image

    • Custom Sized Folding Ramp (less than 24")  $390.91

      No Image

    • Additional Weather Protection Coating  $1,995.00

      No Image

    • Front Panel Brushes (Travel Track Protection)  $399.00

      No Image

    • GFI Outlet in Wing Wall  $159.82

      No Image

    • 1000 lbs. Capacity  $1,995.00

      No Image

    • Handsfree Phone  $999.00

      No Image

    • All Wooden Crate  $199.00

      No Image

    • Float Switch  $399.00

      No Image

  • Delivery Options
    • Pick up at Local Freight Terminal  $0.00

      No Image

    • Factory Pickup  $0.00

      No Image

    • Site Shipping - Customer Provided Fork Lift OR Loading Dock on Site  $0.00

      No Image

    • Site Shipping - Liftgate Delivery (only for 64" models)  $199.00

      No Image

  • Delivery State
    • Alabama  $0.00

      No Image

    • Alaska  $0.00

      No Image

    • Arizona  $0.00

      No Image

    • Arkansas  $0.00

      No Image

    • California  $0.00

      No Image

    • Colorado  $0.00

      No Image

    • Connecticut  $0.00

      No Image

    • Delaware  $0.00

      No Image

    • District of Columbia  $0.00

      No Image

    • Florida  $0.00

      No Image

    • Georgia  $0.00

      No Image

    • Hawaii  $0.00

      No Image

    • Idaho  $0.00

      No Image

    • Illinois  $0.00

      No Image

    • Indiana  $0.00

      No Image

    • Iowa  $0.00

      No Image

    • Kansas  $0.00

      No Image

    • Kentucky  $0.00

      No Image

    • Louisiana  $0.00

      No Image

    • Maine  $0.00

      No Image

    • Maryland  $0.00

      No Image

    • Massachusetts  $0.00

      No Image

    • Michigan  $0.00

      No Image

    • Minnesota  $0.00

      No Image

    • Mississippi  $0.00

      No Image

    • Missouri  $0.00

      No Image

    • Montana  $0.00

      No Image

    • Nebraska  $0.00

      No Image

    • Nevada  $0.00

      No Image

    • New Hampshire  $0.00

      No Image

    • New Jersey  $0.00

      No Image

    • New Mexico  $0.00

      No Image

    • New York  $0.00

      No Image

    • North Carolina  $0.00

      No Image

    • North Dakota  $0.00

      No Image

    • Ohio  $0.00

      No Image

    • Oklahoma  $0.00

      No Image

    • Oregon  $0.00

      No Image

    • Pennsylvania  $0.00

      No Image

    • Rhode Island  $0.00

      No Image

    • South Carolina  $0.00

      No Image

    • South Dakota  $0.00

      No Image

    • Tennessee  $0.00

      No Image

    • Texas  $0.00

      No Image

    • Utah  $0.00

      No Image

    • Vermont  $0.00

      No Image

    • Virginia  $0.00

      No Image

    • Washington  $0.00

      No Image

    • West Virginia  $0.00

      No Image

    • Wisconsin  $0.00

      No Image

    • Wyoming  $0.00

      No Image



What out customers think about this product...

This product currently has no reviews. Would you like to leave one?



spacer
spacer
